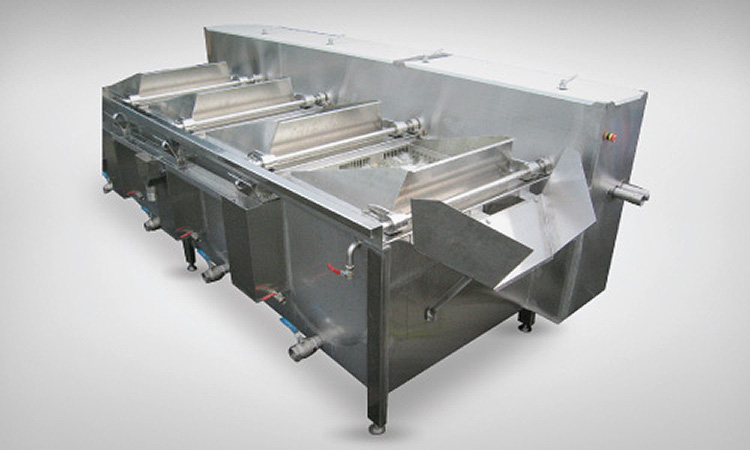

    Four Tank Washer

    Model No.: WA 475  |  Giantwell Machinery Co. Ltd - Taiwan

    Download Product Brochure

    The Food Items can be efficiently washed by water rotation or air pressure or combination of both the tanks can have different function like Pre washing, chemical treatment, cooling and optional addition of steam heat control in any tank.

    3670(L)x1400(W)x1170(H)
    The size of Inner drum is 650x750(mm)
    2HP/415V Water Pump. 4 Nos.
    1HP/415V oil Pump….1No.
    1/2HP/415V Blower …4nos.
    Power : 415V/3Ph/50HZ
    Set time in every tanks. From 6Sec~9Mins

    Note: Technical specifications are subject to change without prior notice due to ongoing research & developments.

    Features

    Three method for washing:
    1. By Water force(Pump)
    2. By Air Force(Blower)
    3. By water and Air together
    User can select any method for washing for different vegetable. Only Press one button.
    All washing can do in Manu/Auto Mode.
    PLC electric control system.
    All frame is made of SUS304
    Auto control the water level in every tank. There is sensor control the solenoid valve can keep the water level when washing.
    Can setting mid stopping time when every drum rotating.
    Digital appear control panel. User can easy change every timer.
