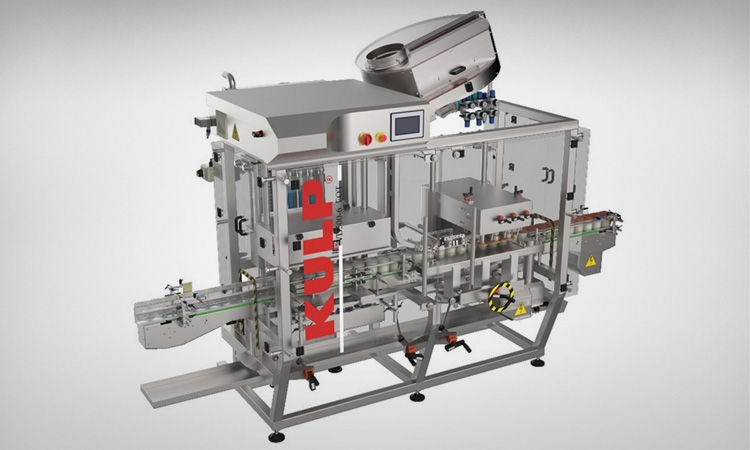

Model No.: 4 Head Filling Machine | Made in Turkey, Kulp Packaging Machinery
Volumetric filling & capping within the same machine - Liquids, semi liquids, viscous & products with particules - Metal twist-off caps, plastic screw caps, push-on caps - Capacity: 4000/5000 packages per hour. TYPES OF FILLED PRODUCTS: Chocolate Spread, Peanut Butter, Hazelnut Hash, Honey & Cream Honey, Mayonnaise, Ketchup, Mustards, Sauces, Jam & Marmalade, Tomato Paste, Pepper Paste, Cream Cheese, Cheese Spread, Labne, Yogurt, Milk, Ayran, Clotted Milk, Molasses, Vinegar, Balsamic Vinegar, Syrups, Pomgrdenade Concentrate, Edible Oils, Pre-cooked Meals, American Salad, Mashed Vegetables, Tapenade, Glaze, Toppings, Soups, etc. Cosmetic Oils, Cosmetic Creams, Shampoo, Conditioner, Liquid Soap, Body-wash, Hair Cream, Body Lotion, Peelings, Face and Body Mask, Waxes, Gels, Vaseline (Petroleum Jelly), Foundation, BB Cream, etc. Ointments, Lotions, Glycerin, Disinfectant, biomedical and sanitary products, veterinary products, etc. Paints, Glue (PVA), Hydrogen peroxide, ink, Fertilizers, Pesticides, Varnish, Household Product, Engine Oil, Glass cleaner, Anti-Freeze, etc.
| For the Four Heads Monoblock machines, the capacity varies according to the filling range as below (specified according to the maximum filling range): | |||||||
| Model | Filling Range | Capacity | |||||
| VD50-4 FOT | 5ml-50ml | 5000 | |||||
| VD150-4 FOT | 15ml-150ml | 4000 |
|||||
| TECHNICAL SPECIFICATIONS : | |||||||
| - Consist of one filling unit and one capping unit within the same frame, reducing the cost and the size of the machine. | |||||||
| - Primes the product from a 80 liters hopper with an automatic level control system. | |||||||
| - The level control system is synchronized with the transfer pump to start or stop. | |||||||
| - The caps are delivered to the sorting system by the cap elevator. | |||||||
| - The sorting system distributes the caps to the cap chute and dispensing blade in the correct position. | |||||||
| - The caps are automatically placed on the packages and closed by the capping system with the required torque. | |||||||
| - All the parts including the main valve and the nozzles are connected by tri-clamps for an easy disassembling for the cleaning process. | |||||||
| - The volume adjustment can be done by a handwheel and a numerator on the machine. | |||||||
| - There are four interchangable filling nozzles which are designed for liquids and viscous products, with an anti dropping system. | |||||||
| - The capping head can be changed easily according to different types and sizes of caps. | |||||||
| - Adjustable speed diving nozzle for foamy products. | |||||||
| - No container-No fill System. | |||||||
| - User friendly touch screen interface available in different languages. | |||||||
| - 3 meters convoyer with adjustable side rails for various sizes of packages. | |||||||
| - Lighted cabin with 10mm polycharbon covers and security switches on the doors. | |||||||
| - The working system is pneumatic an electronic. It operates with 6 bars compressed air. | |||||||
| - The consumption of air is 800 lt/minute when it’s performing with the maximum volume and the maximum speed. | |||||||
| - The electrical connection is three phase (380v / 50-60 Hz) | |||||||
| - Optional C.I.P. suitable cleaning system. | |||||||
| - Optional Double Jacketed Hopper. | |||||||
| - Optional Agitator | |||||||
| - Optional Filling Piston Back Side Cleaning System. MATERIALS USED ON THE FILLER - The parts that contact with the product are 316 L stainless
steel. The other parts are 304 L stainless steel and anodized aluminium. OPERATING TEMPERATURE : | |||||||
Note: Technical specifications are subject to change without prior notice due to ongoing research & developments.
Features:
- FILLING ACCURACY: ± 1%
- ANTI DROPPING SYSTEM ON THE FILLING NOZZLES
- VARIOUS PACKAGING SIZES AND SHAPES
- HOT AND COLD FILLING
- AUTOMATIC SORTING OF THE CAPS
- COMPATIBLE TO THE FOOD HYGIENE STANDARDS
