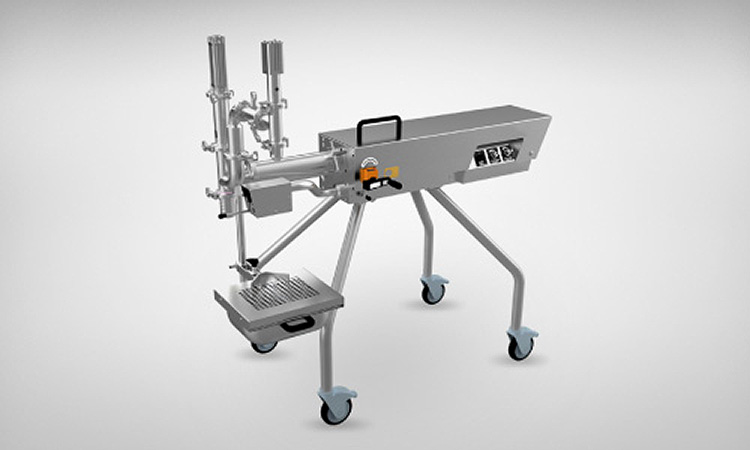

Semi Automatic Fillers-4

Model No.: D1001+SN042  |  Made in Turkey, Kulp Packaging Machinery

Download Product Brochure

These Semi Automatic Fillers are Offered with Various Filling Ranges and Capacities in terms of packages per hour These fillers are used for Filling Items like Honey, Tahina, Molasses, Oils, Syrup, Fruit Juice, Fruit Concentrates, Vinegar, Ketchup, Milk, etc.

Model No	Filling Range (ml)	Filling Range of  Optional Cylinder	Capacity (Packages /Hour)	Air Consumption Litres/Min
D 50	5-50	2-20	1800	100
D150	15-150	5-50	1500	100
D 500	50-500	20-200	1000	300
D 1000	100-1000	20-400	720	300
D 2000	200-2000	50--1000	600	300
D 5000	500-5000	145-1450	420	300

Technical Details :
- This is a volumetric filling machine that works with FESTO pneumatic system.
- It primes the product from its SS  316 L seamless stainless steel hopper.
- The seals are manufactured from teflon ,viton or polyethylene according to the product to be filled.
- The parts on the machine are connected by tri –clamps.
- The machine stands on a stainless steel frame which is supprted by 4 castors, it can be easily move to anywhere.

Materials Used on the fillers :
- The parts that contact with the product are 316 L stainless steel. The other parts are 304 L stainless steel and anodized aluminum.
- FESTO Pneumatic Equipment. (Oil-free)

OPERATING TEMPERATURE :
From +5 ºC to +85 ºC with standard sealings.
Above 90 ºC with special sealing.

FILLING ACCURACY : ± %1

Note: Technical specifications are subject to change without prior notice due to ongoing research & developments.

Features

- Easy to adjust and record  the filling range by the numerator and the hand wheels.

- High surface smoothness and argon arc welding technology prevents contamination.

- The nozzle, main valve and the filling piston are designed for an easy-cleaning. They can be dismantled easily without using any tool.

- Interchangeable nozzles are available according the product, either it is liquid, viscous or particulated.

- There is a height adjustable platform on the filler to place the packages during the filling process.

- The detailed instruction  manual for each model is available.

Accessories :

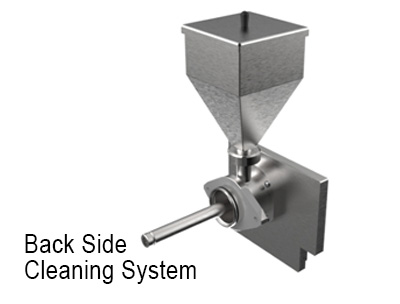

Back Side Cleaning System	It is designed to clean the back side of the sealing system for sticky products.

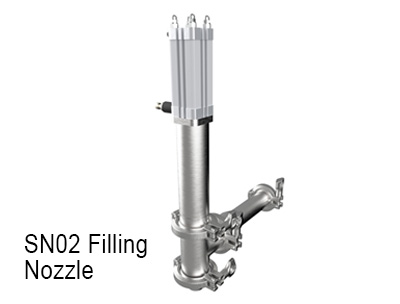

SN02 Filling Nozzle	This filling nozzle is used to fill liquid and viscous products starting from 100ml.

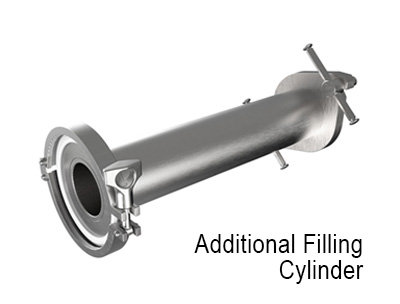

Additional Filling Cylinder	This interchangeable piston enables you to fill from 20ml to 400ml

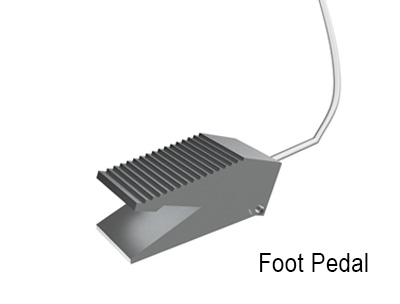

Foot Pedal	For Operating the Filler By Foot
